Lena B. - Customer Review of our 16' Geodesic Dome Kit
for Building Concrete Geodesic Domes


5 Star Review



Hi John,

SOOOO.. happy to hear from you! I JUST returned from my place in Terlingua, Tx (desert).    I screwed my drop cloth (canvas) to the dome frame. Mine was 2v 16' dome. The triangle sections  were pretty large to pull cloth tight enough to prevent sagging.

So I took 3' PVC pipe sections and heated the ends, completely flattened the ends and screwed them to the dome as "braces" between the very top and second sections. That made all the difference in the world!

Being in the desert in the spring is still too hot and dry for my latex to cure slowly. Winter would be much better.

I ended up using more binder than my original recipe to prevent flaking. I basically worked opposite the sun  applying the latex cement early in the morning by hand.

The Flex Seal  is too thick for brushing or rolling, so I hand  painted it on the cement. Works great, WAY too expensive. 3 gal. @ $90.00 each did not cover entirely. I went back a month later (10hr. drive) and layered it again with another rubberized roof coating ($20:00 gal.) Seemed to do the trick..

Got a little rain  and  no problem. At night had strong winds and couple times severe winds, which you couldn't even feel inside the dome.

At one point our camping tent was blown flat and inside the dome, we didn't even know the wind storm had stopped!!

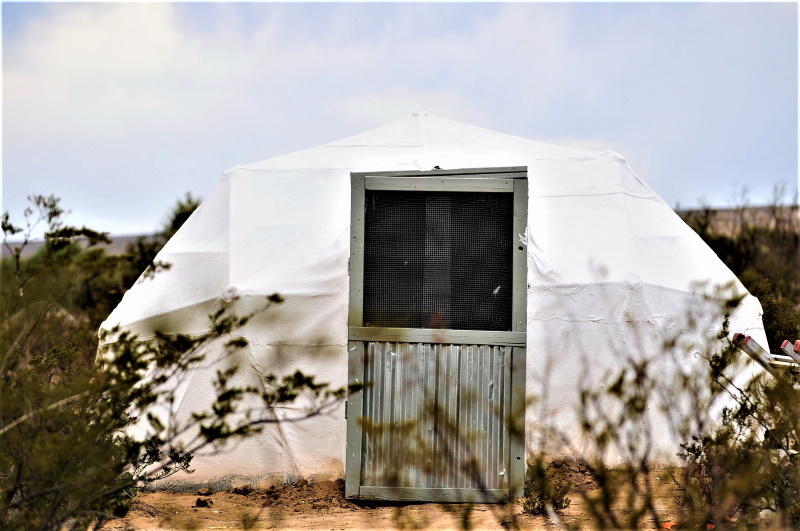

With all the White, it looks like an Igloo with the door. My camera also had white balance issues, since my photos were in bright desert sun.

Please don't be too critical of the door,  my best friend's  17 yr. old grandson build it for me. We'll get it straightened up next trip. Lol!

Please keep me informed about the air crete, I have been researching that for so long. I could never find anyone that could get the formula correct or the spray machine to work. So I pretty much gave up on that.

If you could get a the canvas tight enough to accept the air crete without sagging that would be the ticket. What do you think about spraying aire crete on top of canvas outside and sprayed inside? Cocoon the frame? Im not sure how heavy air crete actually is  before if cures?

This is so exciting!!

Thanks again.

Lena B. - Terlingua, TX

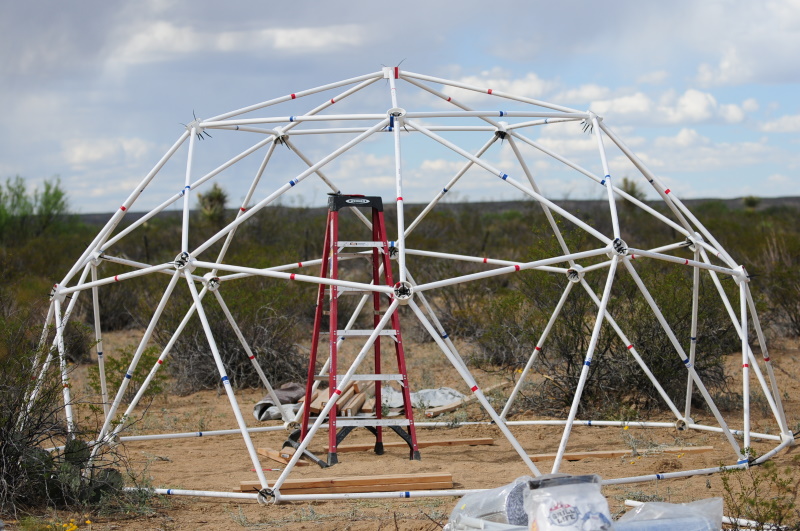

Lena's Original Dome Build.
Lena first attached sheet metal to the dome, and then found that latex cement was a better covering.

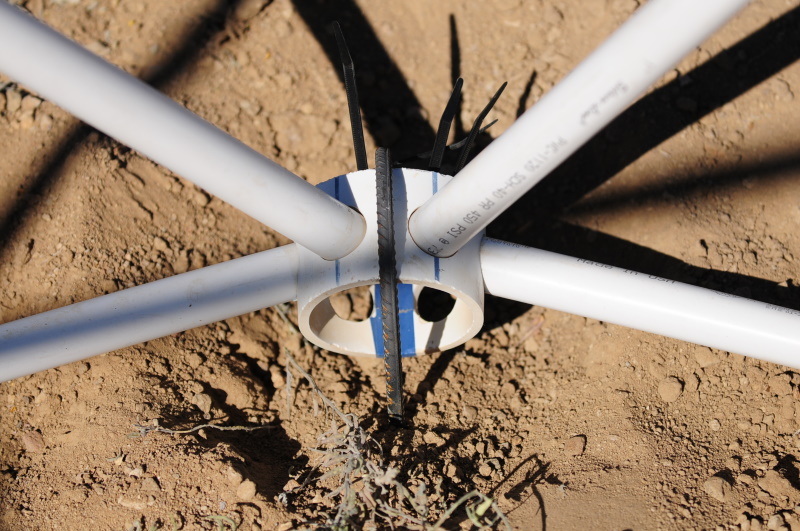

Lena secured each hub to the ground with a rebar stake.
You can also put the rebar stake through the holes on the bottom of the hub.

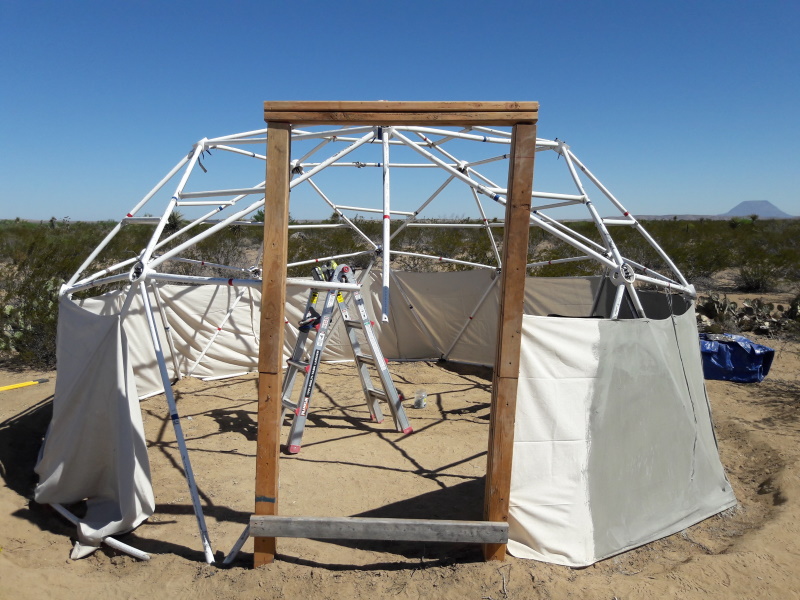

First section of canvas drop cloth has been added to the dome, and the door frame has been set.
Also, look carefully at the top of the dome.
Lena added 5 PVC pipes that are 3' long, with their ends flattened with a heat gun>
She bolted them to the dome across the dome triangles at the top.
These 5 "braces" help keep the fabric and concrete from sagging at the top of the dome until it can set.
An absolutely brilliant addition to the dome design!

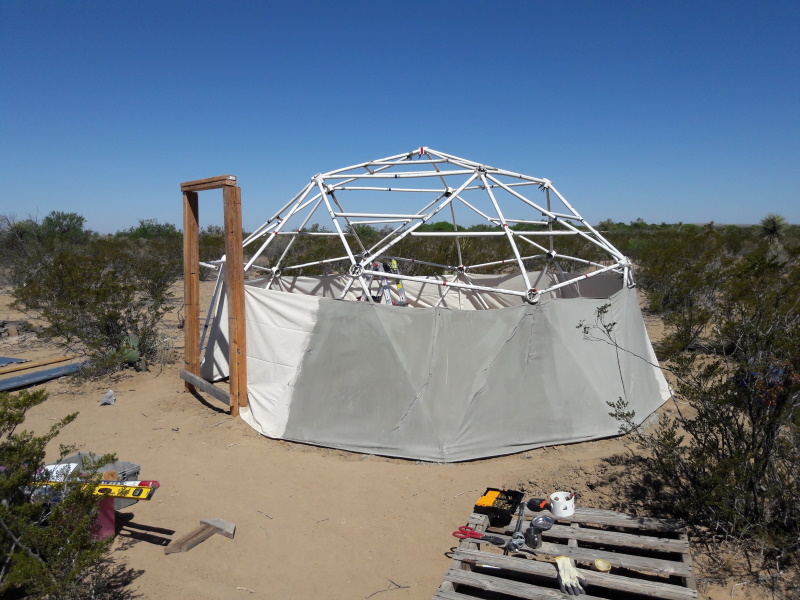

The doorway was set into the ground in front of one of the red "pentagons, with the Red Hub removed.
The struts can then be cut to size, have their ends flattened with a heat gun, and bolted to the door frame.




Awesome!

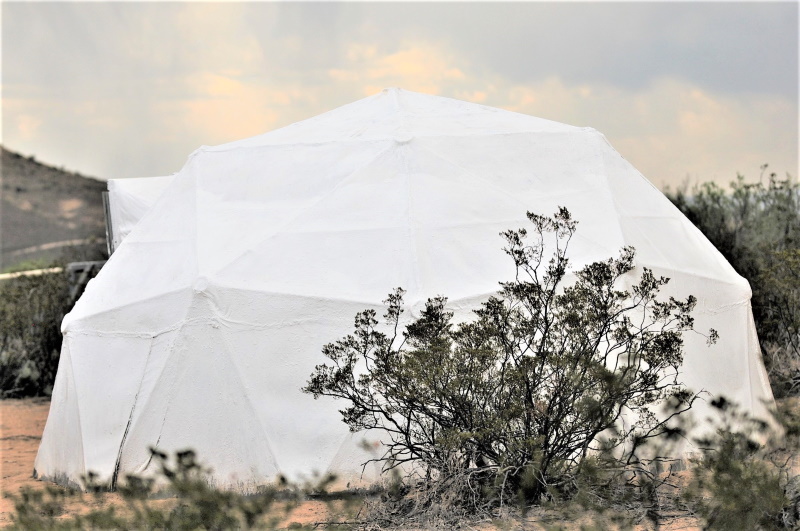

The dome is covered with a white rubberized roof covering that reflects the heat and seals the dome against the weather.
Good job, Lena!



How to Purchase the Frame for this 16' Geodesic Dome





Note from John Hurt, Zip Tie Domes:

Lena B. introduced me to "latex cement", which I believe is the correct solution for creating inexpensive dome coverings.

Latex cement was used by Dr. Albert Knott and Dr. George Nez to provide shelters for thousands of people in Ghana.

Their technique is to stretch several layers of alkali resistant fiberglass window screens over a frame, and then brush on latex cement for a concrete roof.

Dr. George Nez wrote a book on this technique which you can purchase on Amazon: https://www.amazon.com/Latex-Concrete-Habitat-Albert-Knott/dp/1412039975

There is also an "Instructables" page describing this process: https://www.instructables.com/Latex-Concrete-Roof/

Here is a YouTube playlist on latex cement roofs: https://www.youtube.com/watch?v=pPHftizSH3I&list=PLMyL1k1rajd5SKEWgXFYMwq9rNyY6r_Yi

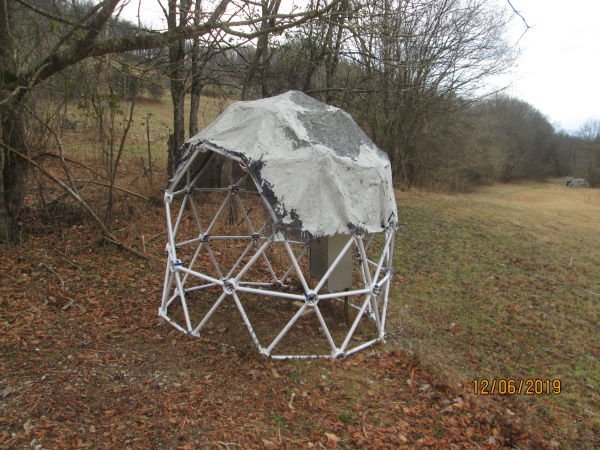

I built my first latex cement roof prototype, which I am using to cover a dog feeder.

I recently purchased a mortar sprayer and other equipment for building large concrete domes. Check back for updates!

I would like to thank Lena for her help in getting me started on using latex cement.

John Hurt
