How to Use
This Calculator

How to Use the Dome Calculator

1. Select Hub Size:
Select "No Hubs" to get the true "chord" length for each strut, which is the full distance for the strut between each geodesic dome vertex.
For most dome construction methods, you will use the "No Hubs" selection.
With our Zip Tie Domes Hub Design, the geodesic dome vertex is located in the middle of our "Center Ring".
When using our Hubs, the width of our Center Ring must be added to the strut length to give the true geodesic dome dimensions.
Select Standard 4" Hubs for calculating domes with our 4" Standard Hubs or Dual Covering Hubs, which have a 2.375" Center Ring. These hubs are used with 1" PVC pipe for struts.
Select Super 6" Hubs for calculating domes with our new 6" Super Hubs, which have a 3.5" Center Ring. These hubs are used with 1.5" PVC pipe for struts.
Select Mega 8" Hubs for calculating domes with our proposed 8" Mega Hubs, which will have a 4.5" Center Ring. These hubs will be used with 2" PVC pipe for struts.

2. Feet or Meters
Click the button for "Meters" if you are using metric measurements.

3. Data Entry:
Enter a number with or without a decimal fraction in any of the number fields on the left. (For example, enter "5" or "3.3333")
Click the Calculate Button. All of the other numbers will be automatically calculated.
The Blue Struts are always the longest struts. If you know your longest strut length, enter your data for the longest strut length in the Blue Strut field.
To build a strong dome, the longest strut should not be more than 6' long.

Cost Calculation and Material Utilization Chart
The default "Length of Pipe" for cutting your struts has been set to 10'. You can change this to 20' or whatever length of pipe you have to cut for your struts.
You can also update the "Cost Per Pipe" amount, and click the Calculate field, and the "Total Cost of Materials" amount will be calculated at the bottom of this section.
If you are cutting 4' struts, consider using 20' lengths of pipe, as there will be less waste as compared to cutting 4' lengths from 10' pipe.

2 Frequency Octahedron Dome Calculator

2 Frequency Octahedron Dome Calculator

2v Octahedron Dome Calculator
2v Octahedron

Select Hub Size
No Hubs:     Standard 4" Hubs:     Super 6" Hubs:     Mega 8" Hubs:
Feet:   Meters:

Convert to Feet & Inches
Chord


Enter the Number of in One Field, then Click the "Calculate" Button.




Dome Height (h)

0 0"




Dome Width / Diameter (d)

0 0"




Length of 12 Blue "A" Struts

0 0"

1.000




Length of 16 Red "B" Struts

0 0"

.76537




Dome Radius (r)

0 0"




Dome Equator Circumference (2πr)

0 0"




Dome Circular Floor Area in Square (πr²)



0

Dome Spherical Surface Area in Square (2πrh)



0

Dome Spherical Volume in Cubic (πh(3r² + h²)/6)



8

Dome Base Perimeter Number of Sides



0

8 Sided Base Perimeter Length ()



0

8 Sided Base Floor Area (Square )



16

Total Number of Dome Panels / Faces



0

Surface Area for 16 Dome Panels / Faces (Square )



0

Total Volume of Tetrahedrons behind 16 Dome Panels / Faces in Cubic



5

Number of Yellow 90° 4-Way Hubs



0

Number of Red 72° 5-Way Hubs



8

Number of Blue 60° 6-Way Hubs



13

Number of Center Rings



56

Number of Zip Ties to Construct the Dome



39

Number of Zip Ties to Secure the Inside Dual Covering Hubs (3 per hub)



39

Number of Zip Ties to Secure the Outside Dual Covering Hubs (3 per hub)



0 Length
0 Width

Absolute Minimum Square Covering Dimensions for a Tightly Fitted Dome Cover



0 Length
0 Width

Minimum Square Covering Dimensions for a Dome Cover Secured to the Hubs with Zip Ties with a Minimum Overlap at the Bottom of the Dome



0 Length
0 Width

Maximum Square Covering Dimensions for a Dome Cover Secured to the Hubs with Zip Ties with an Ample Overlap at the Bottom of the Dome



0

Total Length of All Struts Added Together ()



Instructional Video on How to Use This Section of the Dome Calculator




Cost Calculation and Material Utilization Chart








Length of Pipe:

Cost Per Pipe:



Blue "A" Struts




Blue "A" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (12) Blue "A" Struts:

0




Number of Blue "A" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Blue "A" Struts Created from the first 0 Pipes:

0




Number of Blue "A" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 12 Blue "A" Struts:

0



Red "B" Struts




Red "B" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (16) Red "B" Struts:

0




Number of Red "B" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Red "B" Struts Created from the first 0 Pipes:

0




Number of Red "B" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 16 Red "B" Struts:

0




COST OF MATERIALS GRAND TOTALS:




Total Waste for All Struts:

0




Number of Uncut Pipe/Materials Needed:

0




Total Cost of Materials @ $4.50 Each:

$




Instructional Video on How to Use This Section of the Dome Calculator




Dome Weight Chart


Weight Chart 3/4" PVC 1" PVC 1.25" PVC 1.5" PVC 3/4" EMT 1" EMT 1.25" EMT 1.5" EMT 1" Bamboo 1.5" Bamboo
Lbs Per Linear Ft .21 .32 .43 .51 .43 .64 .95 1.10 .2 .4
12 Blue "A" Struts 0 0 0 0 0 0 0 0 0 0
16 Red "B" Struts 0 0 0 0 0 0 0 0 0 0
Total Weight of Struts (lbs) 0 0 0 0 0 0 0 0 0 0
Weight of Hubs, Rings, Zip Ties 0 0 0 0 0 0 0 0 0 0
Total Dome Weight (lbs) 0 0 0 0 0 0 0 0 0 0



Instructional Video on How to Use This Section of the Dome Calculator




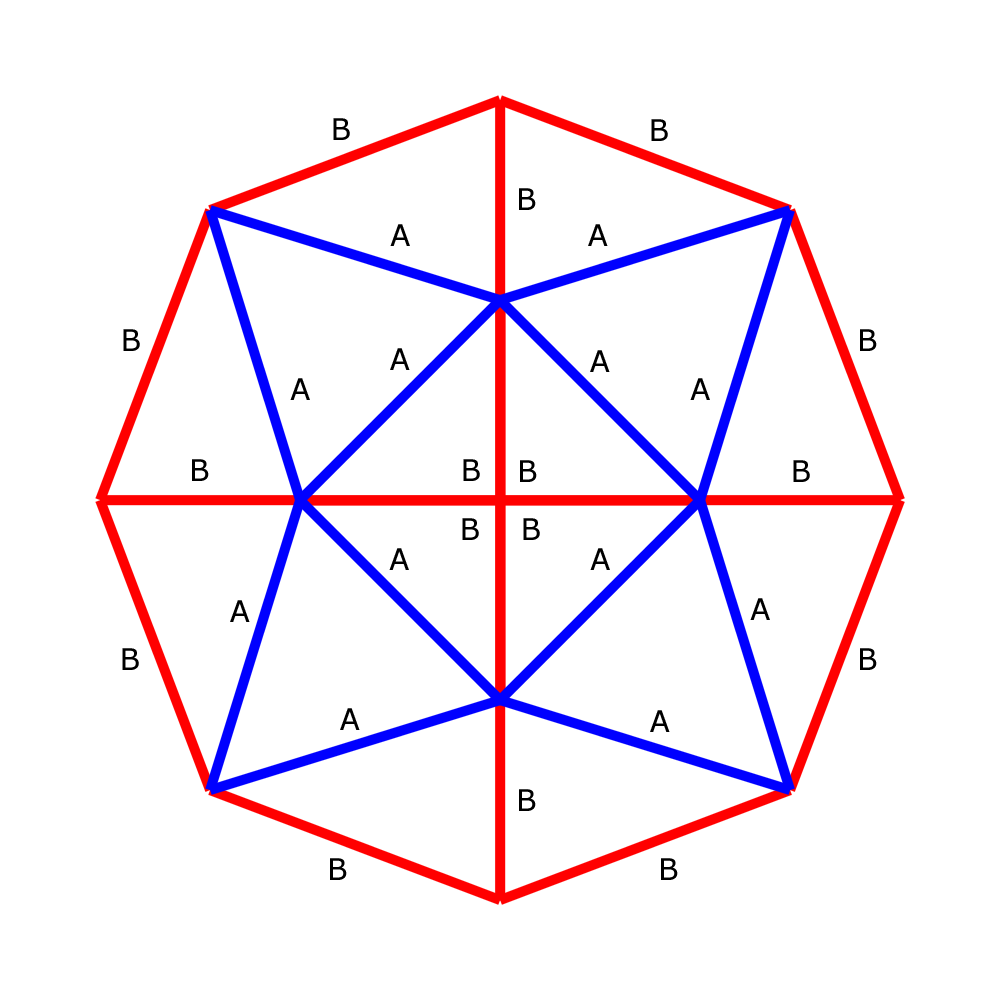

2V Octahedron Dome Construction Diagram





Instructional Video on How to Use This Section of the Dome Calculator

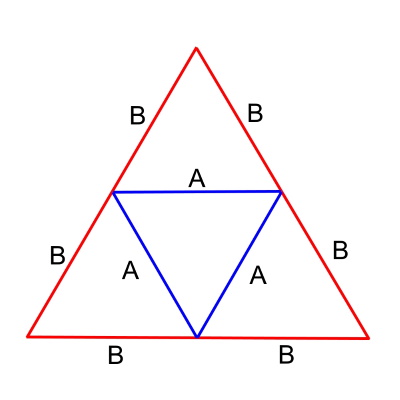

2 Frequency Octahedron Dome Tessellation Diagram

2V Octahedron Dome Tessellation Diagram



Blue "A" Chord Factor:   1.000

Red "B" Chord Factor:   .76537




Dome Panels / Coverings



A 2V Octahedron Dome Will Require Panels / Coverings for:





4 A-A-A Equilateral Triangles

12 B-A-B Isosceles Triangles






Total Triangles: 16

--------------------------------------------



Triangle Dimensions



4 A-A-A Equilateral Triangles


A-A-A Triangle
Base = "A"
Altitude A Decimal 0
Feet and Inches 0 0"


A-A-A
Triangle
Edge		 Measurement Strut
Length		 Center Ring
Hub Width		 Triangle Edge
Total Length

A

 Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each A-A-A Triangle 0 Square



12 B-A-B Isosceles Triangles


B-A-B Triangle
Base = "A"
Altitude A Decimal 0
Feet and Inches 0 0"

B-A-B Triangle
Base = "B"
Altitude B Decimal 0
Feet and Inches 0 0"


B-A-B
Triangle
Edge		 Measurement Strut
Length		 Center Ring
Hub Width		 Triangle Edge
Total Length

A

 Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

B

 Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each B-A-B Triangle 0 Square


Instructional Video on How to Use This Section of the Dome Calculator
