How to Use
This Calculator

How to Use the Dome Calculator

1. Select Hub Size:
Select "No Hubs" to get the true "chord" length for each strut, which is the full distance for the strut between each geodesic dome vertex.
For most dome construction methods, you will use the "No Hubs" selection.
With our Zip Tie Domes Hub Design, the geodesic dome vertex is located in the middle of our "Center Ring".
When using our Hubs, the width of our Center Ring must be added to the strut length to give the true geodesic dome dimensions.
Select Standard 4" Hubs for calculating domes with our 4" Standard Hubs or Dual Covering Hubs, which have a 2.375" Center Ring. These hubs are used with 1" PVC pipe for struts.
Select Super 6" Hubs for calculating domes with our new 6" Super Hubs, which have a 3.5" Center Ring. These hubs are used with 1.5" PVC pipe for struts.
Select Mega 8" Hubs for calculating domes with our proposed 8" Mega Hubs, which will have a 4.5" Center Ring. These hubs will be used with 2" PVC pipe for struts.

2. Feet or Meters
Click the button for "Meters" if you are using metric measurements.

3. Data Entry:
Enter a number with or without a decimal fraction in any of the number fields on the left. (For example, enter "5" or "3.3333")
Click the Calculate Button. All of the other numbers will be automatically calculated.
The Blue Struts are always the longest struts. If you know your longest strut length, enter your data for the longest strut length in the Blue Strut field.
To build a strong dome, the longest strut should not be more than 6' long.

Cost Calculation and Material Utilization Chart
The default "Length of Pipe" for cutting your struts has been set to 10'. You can change this to 20' or whatever length of pipe you have to cut for your struts.
You can also update the "Cost Per Pipe" amount, and click the Calculate field, and the "Total Cost of Materials" amount will be calculated at the bottom of this section.
If you are cutting 4' struts, consider using 20' lengths of pipe, as there will be less waste as compared to cutting 4' lengths from 10' pipe.

2 Frequency Silo Dome 2 Calculator

This is a standard 2v dome that is mounted on top of two vertical sections of 30 blue struts and 10 blue hubs each, which raises the center height of the dome.

2 Frequency Silo Dome 2 Calculator

2v Silo Dome 2 Calculator
2v Silo Dome 2

Select Hub Size
No Hubs:     Standard 4" Hubs:     Super 6" Hubs:     Mega 8" Hubs:
Feet:   Meters:

Convert to Feet & Inches
Chord


Enter the Number of in One Field, then Click the "Calculate" Button.




Silo Dome 2 Height (h)

0 0"




Silo Dome 2 Width / Diameter (d)

0 0"




Length of 95 Blue "A" Struts

0 0"

.61803




Length of 30 Red "B" Struts

0 0"

.54653




Silo Dome 2 Radius (r)

0 0"




Silo Dome 2 Equator Circumference (2πr)

0 0"




Silo Dome 2 Circular Floor Area in Square (πr²)



0

Silo Dome 2 Surface Area in Square (2πr²+(SiloHeight*Circumference)



0

Silo Dome 2 Volume in Cubic (2/3πr³+πr³*SiloHeight)



10

Dome Base Perimeter Number of Sides



0

10 Sided Base Perimeter Length ()



0

10 Sided Base Floor Area (Square )



80

Total Number of Dome Panels / Faces



0

Surface Area for 80 Dome Panels / Faces (Square )



0

Total Volume of Tetrahedrons behind 80 Dome Panels / Faces in Cubic



6

Number of Red 72° 5-Way Hubs



40

Number of Blue 60° 6-Way Hubs



46

Number of Center Rings



250

Number of Zip Ties to Construct the Silo Dome 2



138

Number of Zip Ties to Secure the Inside Dual Covering Hubs (3 per hub)



138

Number of Zip Ties to Secure the Outside Dual Covering Hubs (3 per hub)



0 Length
0 Width

Absolute Minimum Square Covering Dimensions for a Tightly Fitted Silo Dome 2 Cover



0 Length
0 Width

Minimum Square Covering Dimensions for a Silo Dome 2 Cover Secured to the Hubs with Zip Ties with a Minimum Overlap at the Bottom of the Silo Dome 2



0 Length
0 Width

Maximum Square Covering Dimensions for a Silo Dome 2 Cover Secured to the Hubs with Zip Ties with an Ample Overlap at the Bottom of the Dome



0

Total Length of All Struts Added Together ()



Instructional Video on How to Use This Section of the Dome Calculator




Cost Calculation and Material Utilization Chart








Length of Pipe:

Cost Per Pipe:



Blue "A" Struts




Blue "A" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (95) Blue "A" Struts:

0




Number of Blue "A" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Blue "A" Struts Created from the first 0 Pipes:

0




Number of Blue "A" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 95 Blue "A" Struts:

0



Red "B" Struts




Red "B" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (30) Red "B" Struts:

0




Number of Red "B" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Red "B" Struts Created from the first 0 Pipes:

0




Number of Red "B" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 30 Red "B" Struts:

0




COST OF MATERIALS GRAND TOTALS:




Total Waste for All Struts:

0




Number of Uncut Pipe/Materials Needed:

0




Total Cost of Materials @ $4.50 Each:

$




Instructional Video on How to Use This Section of the Dome Calculator




Silo Dome 2 Weight Chart


Weight Chart 3/4" PVC 1" PVC 1.25" PVC 1.5" PVC 3/4" EMT 1" EMT 1.25" EMT 1.5" EMT 1" Bamboo 1.5" Bamboo
Lbs Per Linear Ft .21 .32 .43 .51 .43 .64 .95 1.10 .2 .4
95 Blue "A" Struts 0 0 0 0 0 0 0 0 0 0
30 Red "B" Struts 0 0 0 0 0 0 0 0 0 0
Total Weight of Struts (lbs) 0 0 0 0 0 0 0 0 0 0
Weight of Hubs, Rings, Zip Ties 0 0 0 0 0 0 0 0 0 0
Total Silo Dome 2 Weight (lbs) 0 0 0 0 0 0 0 0 0 0



Instructional Video on How to Use This Section of the Dome Calculator

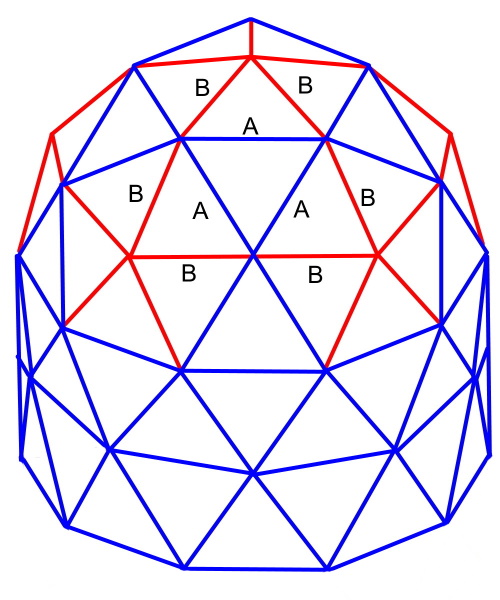

2V Silo Dome 2 Construction Diagram





Instructional Video on How to Use This Section of the Dome Calculator

2 Frequency Silo Dome 2 Tessellation Diagram

2V Silo Dome 2 Tessellation Diagram



Blue "A" Chord Factor:   .61803

Red "B" Chord Factor:   .54653




Silo Dome 2 Panels / Coverings



A 2V Silo Dome 2 Will Require Panels / Coverings for:





50 A-A-A Equilateral Triangles

30 B-A-B Isosceles Triangles






Total Triangles: 80

--------------------------------------------



Triangle Dimensions



50 A-A-A Equilateral Triangles


A-A-A Triangle
Base = "A"
Altitude A Decimal 0
Feet and Inches 0 0"


A-A-A
Triangle
Edge		 Measurement Strut
Length		 Center Ring
Hub Width		 Triangle Edge
Total Length

A

 Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each A-A-A Triangle 0 Square



30 B-A-B Isosceles Triangles


B-A-B Triangle
Base = "A"
Altitude A Decimal 0
Feet and Inches 0 0"

B-A-B Triangle
Base = "B"
Altitude B Decimal 0
Feet and Inches 0 0"


B-A-B
Triangle
Edge		 Measurement Strut
Length		 Center Ring
Hub Width		 Triangle Edge
Total Length

A

 Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

B

 Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each B-A-B Triangle 0 Square


Instructional Video on How to Use This Section of the Dome Calculator
