5V Geodesic Sphere Calculator

Click Here to Call Us:
1-931-858-6892



How to Use the Dome Calculator

1. Select Hub Size:
Select "No Hubs" to get the true "chord" length for each strut, which is the full distance for the strut between each geodesic dome vertex.
For most dome construction methods, you will use the "No Hubs" selection.
With our Zip Tie Domes Hub Design, the geodesic dome vertex is located in the middle of our "Center Ring".
When using our Hubs, the width of our Center Ring must be added to the strut length to give the true geodesic dome dimensions.
Select Standard 4" Hubs for calculating domes with our 4" Standard Hubs or Dual Covering Hubs, which have a 2.375" Center Ring. These hubs are used with 1" PVC pipe for struts.
Select Super 6" Hubs for calculating domes with our new 6" Super Hubs, which have a 3.5" Center Ring. These hubs are used with 1.5" PVC pipe for struts.
Select Mega 8" Hubs for calculating domes with our proposed 8" Mega Hubs, which will have a 4.5" Center Ring. These hubs will be used with 2" PVC pipe for struts.

2. Feet or Meters
Click the button for "Meters" if you are using metric measurements.

3. Data Entry:
Enter a number with or without a decimal fraction in any of the number fields on the left. (For example, enter "5" or "3.3333")
Click the Calculate Button. All of the other numbers will be automatically calculated.
The Blue Struts are always the longest struts. If you know your longest strut length, enter your data for the longest strut length in the Blue Strut field.
To build a strong dome, the longest strut should not be more than 6' long.

Cost Calculation and Material Utilization Chart
The default "Length of Pipe" for cutting your struts has been set to 10'. You can change this to 20' or whatever length of pipe you have to cut for your struts.
You can also update the "Cost Per Pipe" amount, and click the Calculate field, and the "Total Cost of Materials" amount will be calculated at the bottom of this section.
If you are cutting 4' struts, consider using 20' lengths of pipe, as there will be less waste as compared to cutting 4' lengths from 10' pipe.

5 Frequency Geodesic Sphere Calculator

5v Geodesic Sphere Calculator
5v Sphere

Select Hub Size
No Hubs:     Standard 4" Hubs:     Super 6" Hubs:     Mega 8" Hubs:
Feet:   Meters:

Convert to Feet & Inches
Chord


Enter the Number of in One Field, then Click the "Calculate" Button.




Sphere

0 0"




Sphere Height / Width

0 0"




Length of 60 Red "A" Struts

0 0"

.19814743




Length of 60 Yellow "B" Struts

0 0"

.23179025




Length of 120 Brown "C" Struts

0 0"

.22568578




Length of 120 Green "D" Struts

0 0"

.24724291




Length of 120 Orange "E" Struts

0 0"

.25516701




Length of 120 Black "F" Struts

0 0"

.24508578




Length of 60 Blue "G" Struts

0 0"

.26159810




Length of 60 Purple "H" Struts

0 0"

.23159760




Length of 30 Gray "I" Struts

0 0"

.24534642




Sphere Radius (r)

0 0"




Sphere Equator Circumference (2πr)

0 0"




Sphere



0

Sphere Spherical Surface Area in Square (4πr²)



0

Sphere Spherical Volume in Cubic (4/3πr³)



0

Dome Base Perimeter Number of Sides



0

0 Sided Base Perimeter Length ()



0

0 Sided Base Floor Area (Square )



550

Total Number of Dome Panels / Faces



0

Surface Area for 550 Dome Panels / Faces (Square )



0

Total Volume of Tetrahedrons behind 550 Dome Panels / Faces in Cubic



12

Number of Red 72° 5-Way Hubs



240

Number of Blue 60° 6-Way Hubs



252

Number of Center Rings



1500

Number of Zip Ties to Construct the Sphere



756

Number of Zip Ties to Secure the Inside Dual Covering Hubs (3 per hub)



756

Number of Zip Ties to Secure the Outside Dual Covering Hubs (3 per hub)



0 Length
0 Width

Absolute Minimum Square Covering Dimensions for a Tightly Fitted Sphere Cover



0 Length
0 Width

Minimum Square Covering Dimensions for a Sphere Cover Secured to the Hubs with Zip Ties with a Minimum Overlap at the Bottom of the Sphere



0 Length
0 Width

Maximum Square Covering Dimensions for a Sphere Cover Secured to the Hubs with Zip Ties with an Ample Overlap at the Bottom of the Dome



0

Total Length of All Struts Added Together ()

Cost Calculation and Material Utilization Chart






Length of Pipe:

Cost Per Pipe:



Red "A" Struts




Red "A" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (60) Red "A" Struts:

0




Number of Red "A" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Red "A" Struts Created from the first 0 Pipes:

0




Number of Red "A" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 60 Red "A" Struts:

0



Yellow "B" Struts




Yellow "B" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (60) Yellow "B" Struts:

0




Number of Yellow "B" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Yellow "B" Struts Created from the first 0 Pipes:

0




Number of Yellow "B" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 60 Yellow "B" Struts:

0



Brown "C" Struts




Brown "C" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (120) Brown "C" Struts:

0




Number of Brown "C" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Brown "C" Struts Created from the first 0 Pipes:

0




Number of Brown "C" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 120 Brown "C" Struts:

0



Green "D" Struts




Green "D" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (120) Green "D" Struts:

0




Number of Green "D" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Green "D" Struts Created from the first 0 Pipes:

0




Number of Green "D" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 120 Green "D" Struts:

0



Orange "E" Struts




Orange "E" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (120) Orange "E" Struts:

0




Number of Orange "E" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Orange "E" Struts Created from the first 0 Pipes:

0




Number of Orange "E" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 120 Orange "E" Struts:

0



Black "F" Struts




Black "F" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (120) Black "F" Struts:

0




Number of Black "F" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Black "F" Struts Created from the first 0 Pipes:

0




Number of Black "F" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 120 Black "F" Struts:

0



Blue "G" Struts




Blue "G" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (60) Blue "G" Struts:

0




Number of Blue "G" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Blue "G" Struts Created from the first 0 Pipes:

0




Number of Blue "G" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 60 Blue "G" Struts:

0



Purple "H" Struts




Purple "H" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (60) Purple "H" Struts:

0




Number of Purple "H" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Purple "H" Struts Created from the first 0 Pipes:

0




Number of Purple "H" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 60 Purple "H" Struts:

0



Gray "I" Struts




Gray "I" Strut Units Entered:

0

Feet and Inches:

00"




Number of Pipes needed to Create (30) Gray "I" Struts:

0




Number of Gray "I" Struts Produced From Each Uncut Pipe:

0




Waste for First 0 Pipes after Cutting 0 Struts Each:

0 = 00"




<-




Number of Gray "I" Struts Created from the first 0 Pipes:

0




Number of Gray "I" Struts Created from the Last Pipe:

0




Waste on the Last Pipe after Cutting 0 Strut(s):

0




<-




Total Waste in Creating 30 Gray "I" Struts:

0




COST OF MATERIALS GRAND TOTALS:




Total Waste for All Struts:

0




Number of Uncut Pipe/Materials Needed:

0




Total Cost of Materials @ $4.50 Each:

$



Sphere Weight Chart


Weight Chart 3/4" PVC 1" PVC 1.25" PVC 1.5" PVC 3/4" EMT 1" EMT 1.25" EMT 1.5" EMT 1" Bamboo 1.5" Bamboo
Lbs Per Linear Ft .21 .32 .43 .51 .43 .64 .95 1.10 .2 .4
60 Red "A" Struts 0 0 0 0 0 0 0 0 0 0
60 Yellow "B" Struts 0 0 0 0 0 0 0 0 0 0
120 Brown "C" Struts 0 0 0 0 0 0 0 0 0 0
120 Green "D" Struts 0 0 0 0 0 0 0 0 0 0
120 Orange "E" Struts 0 0 0 0 0 0 0 0 0 0
120 Black "F" Struts 0 0 0 0 0 0 0 0 0 0
60 Blue "G" Struts 0 0 0 0 0 0 0 0 0 0
60 Purple "H" Struts 0 0 0 0 0 0 0 0 0 0
30 Gray "I" Struts 0 0 0 0 0 0 0 0 0 0
Total Weight of Struts (lbs) 0 0 0 0 0 0 0 0 0 0
Weight of Hubs, Rings, Zip Ties 0 0 0 0 0 0 0 0 0 0
Total Sphere Weight (lbs) 0 0 0 0 0 0 0 0 0 0

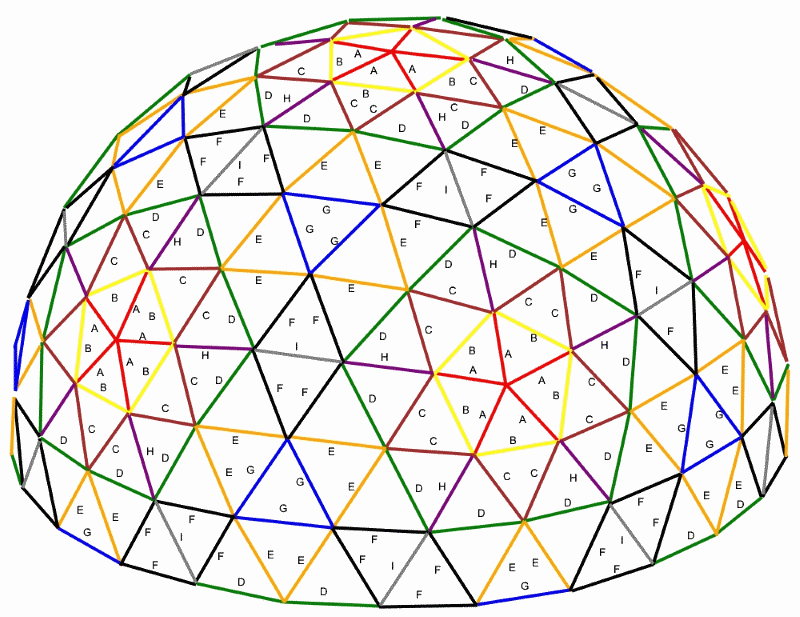

5 Frequency Geodesic Sphere Tessellation Diagram

5V Geodesic Sphere Tessellation Diagram



Red "A" Chord Factor:   .19814743

Yellow "B" Chord Factor:   .23179025

Brown "C" Chord Factor:   .22568578

Green "D" Chord Factor:   .24724291

Orange "E" Chord Factor:   .25516701

Black "F" Chord Factor:   .24508578

Blue "G" Chord Factor:   .26159810

Purple "H" Chord Factor:   .23159760

Gray "I" Chord Factor:   .24534642

Sphere Panels / Coverings



A 5V Geodesic Sphere Will Require Panels / Coverings for:





60 A-B-A Isosceles Triangles

60 C-B-C Isosceles Triangles






120 C-D-H Scalene Triangles

120 D-E-F Scalene Triangles

60 E-G-E Isosceles Triangles



60 F-I-F Isosceles Triangles

20 G-G-G Equilateral Triangles






Total Triangles: 550

--------------------------------------------



Triangle Dimensions



60 A-B-A Isosceles Triangles


A-B-A Triangle
Base = "A"
Altitude A Decimal 0
Feet and Inches 0 0"

A-B-A Triangle
Base = "B"
Altitude B Decimal 0
Feet and Inches 0 0"


A-B-A
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

A

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

B

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each A-B-A Triangle 0 Square



60 C-B-C Isosceles Triangles


C-B-C Triangle
Base = "B"
Altitude B Decimal 0
Feet and Inches 0 0"

C-B-C Triangle
Base = "C"
Altitude C Decimal 0
Feet and Inches 0 0"


C-B-C
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

B

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

C

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each C-B-C Triangle 0 Square



120 C-D-H Scalene Triangles

C-D-H Triangle
Base = "C"
Altitude C Decimal 0
Feet and Inches 0 0"
C-D-H Triangle
Base = "D"
Altitude D Decimal 0
Feet and Inches 0 0"
C-D-H Triangle
Base = "H"
Altitude H Decimal 0
Feet and Inches 0 0"

C-D-H
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

C

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

D

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

H

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each C-D-H Triangle 0 Square



120 D-E-F Scalene Triangles

D-E-F Triangle
Base = "D"
Altitude D Decimal 0
Feet and Inches 0 0"
D-E-F Triangle
Base = "E"
Altitude E Decimal 0
Feet and Inches 0 0"
D-E-F Triangle
Base = "F"
Altitude F Decimal 0
Feet and Inches 0 0"

D-E-F
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

D

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

E

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

F

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each D-E-F Triangle 0 Square



60 E-G-E Isosceles Triangles


E-G-E Triangle
Base = "E"
Altitude E Decimal 0
Feet and Inches 0 0"

E-G-E Triangle
Base = "G"
Altitude G Decimal 0
Feet and Inches 0 0"


E-G-E
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

E

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

G

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each E-G-E Triangle 0 Square



60 F-I-F Isosceles Triangles


F-I-F Triangle
Base = "F"
Altitude F Decimal 0
Feet and Inches 0 0"

F-I-F Triangle
Base = "I"
Altitude I Decimal 0
Feet and Inches 0 0"


F-I-F
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

F

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

I

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each F-I-F Triangle 0 Square



20 G-G-G Equilateral Triangles


G-G-G Triangle
Base = "E"
Altitude E Decimal 0
Feet and Inches 0 0"


G-G-G
Triangle
Edge
Measurement Strut
Length
Center Ring
Hub Width
Triangle Edge
Total Length

E

Decimal 0 0 0
Feet and Inches 0 0" 0" 0 0"

Surface Area for Each G-G-G Triangle 0 Square




5 Frequency Geodesic Sphere Calculator generated by PERL on Friday, December 2, 2022.
Javascript Compiled On
Powered by Notepad++.
Software Design by johnhurt.com.


ZURB Foundation 5.0

Responsive Mobile Design

This Site Uses

ZURB Foundation

The most advanced responsive front-end framework in the world.





Flag of Scotland
Alba gu bráth - Scotland Until Judgment

The Banks o’ Doon

Ye banks and braes o’ bonie Doon,
How can ye bloom sae fresh and fair?
How can ye chant, ye little birds,
And I sae weary fu’ o’ care!
Thou’ll break my heart, thou warbling bird,
That wantons thro’ the flowering thorn:
Thou minds me o’ departed joys,
Departed never to return.

Aft hae I rov’d by Bonie Doon,
To see the rose and woodbine twine:
And ilka bird sang o’ its Luve,
And fondly sae did I o’ mine;
Wi’ lightsome heart I pu’d a rose,
Fu’ sweet upon its thorny tree!
And may fause Luver staw my rose,
But ah! he left the thorn wi’ me.

Robert Burns

To place an order online, visit our Online Catalog.

For a telephone order, call us at 1-931-858-6892.

Or, go to our Contact Us page to send us an email.

Follow Zip Tie Domes on FaceBook, YouTube, Pinterest and Instagram
