Download Plans for Manufacturing a
2v Tunnel Dome with 3 Extensions
with Standard Hubs





2v Tunnel Domes with 3 Extension Examples

  • 2v Tunnel Dome 3 Ext. Front View

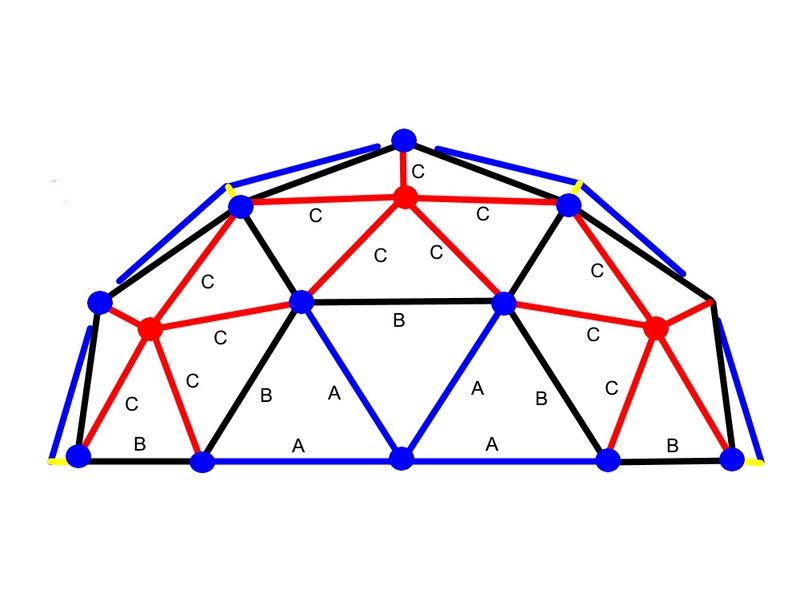

    2v Tunnel Dome 3 Ext. Front View
  • 2v Tunnel Dome 3 Ext. Top Down View

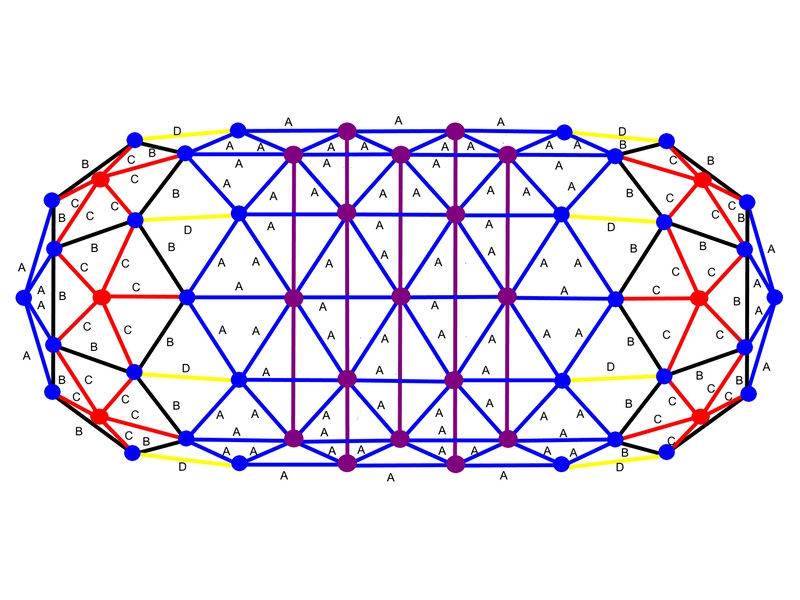

    2v Tunnel Dome 3 Ext. Top Down View
  • 2v Tunnel Dome 3 Ext. Side View
    2v Tunnel Dome 3 Ext. Side View
  • Building the 2v Tunnel Dome with 3 Extensions

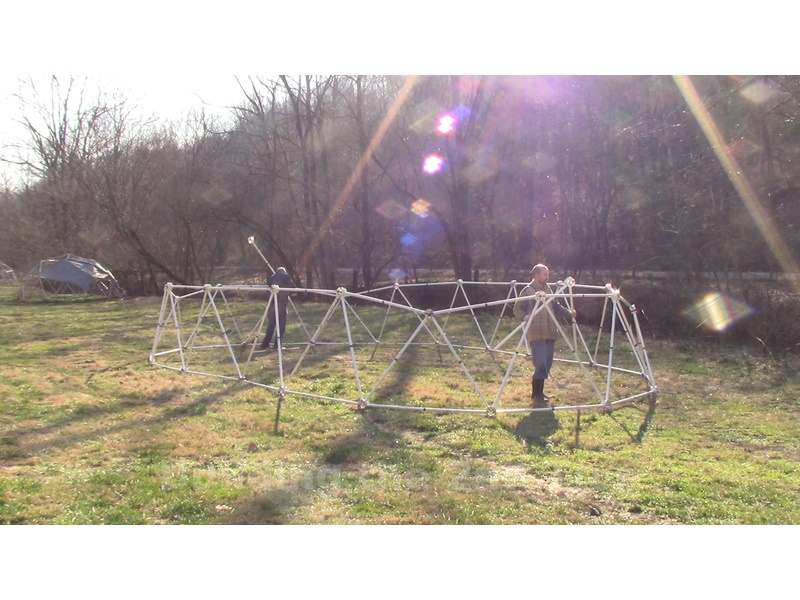

    Building the 2v Tunnel Dome with 3 Extensions
  • Completed 2v Tunnel Dome with 3 Extensions
    Completed 2v Tunnel Dome with 3 Extensions

55 hubs, 144 struts.
The 2v Tunnel Dome with 3 Extensions produces a larger space for a greenhouse or shed.
Listed 2v Tunnel Dome 3 Extensions Sizes: 11' wide, 24' long to 20' wide, 43' long.
You can build larger or smaller 2v Tunnel Domes by adjusting the strut lengths, contact us for details.

2v Tunnel Dome Standard Hubs

Very Easy to Manufacture.


5-way Red Hubs
6-way Blue Hubs
The Standard Hubs are used for geodesic greenhouses, sheds, chicken coops, swimming pool covers, and other standard dome designs.

  The Standard Hubs allows a Greenhouse to be covered with 1 layer of plastic on the outside of the dome.

 The Standard Hubs are the easiest Dome Hubs to manufacture.

Tools Needed to Manufacture the Standard Hubs: A Power Hand Drill and Carpenter's Hand Saw will work, but a Chop Saw and Drill Press makes manufacturing the hubs much easier.







Each 2v Tunnel Dome with 3 Extensions Download Contains:

  • A Manufacturing Manual with step by step details on how to make our patented Standard hubs. (26 pages with color photographs for each step.)
  • The correct bit size for drilling the hub outer collar for each strut diameter and type.
  • Complete instructions for using 1", 3/4", 1/2" Schedule 40 PVC Pipe, or 1", 3/4", 1/2" EMT Conduit, or 32mm, 25mm OD Metric Pipe for making your own Geodesic Dome struts.
  • The lengths for cutting the geodesic dome struts to make each dome size.
  • An assembly video and construction diagram for building the dome.
  • A 2v Tunnel Dome with 3 Extensions Calculator to help you build a dome of any size.
  • A License that authorizes you to legally manufacture up to 3 Geodesic Domes using our patented hub design.
  • Ongoing Customer support by email or telephone to answer any of your technical questions.






Download a Complete Set of Instructions and Manufacturing License for Building a 2v Tunnel Dome with 3 Extensions Using our Patented Hub Design




Geodesic Tunnel Dome with 3 Extensions Plans
(with Standard Hubs) - $41.25
55 hubs, 144 struts.
Download Geodesic Tunnel Dome with 3 Extensions (with Standard Hubs)
Price: $41.25

Secure Credit Card Processing by

We cannot accept returns on digital downloads.

All digital download sales are final.

If you have any questions, you can call us at 1 (931) 858-6892.
