Download Plans for Manufacturing
a 4v Geodesic Dome with Dual Covering Hubs

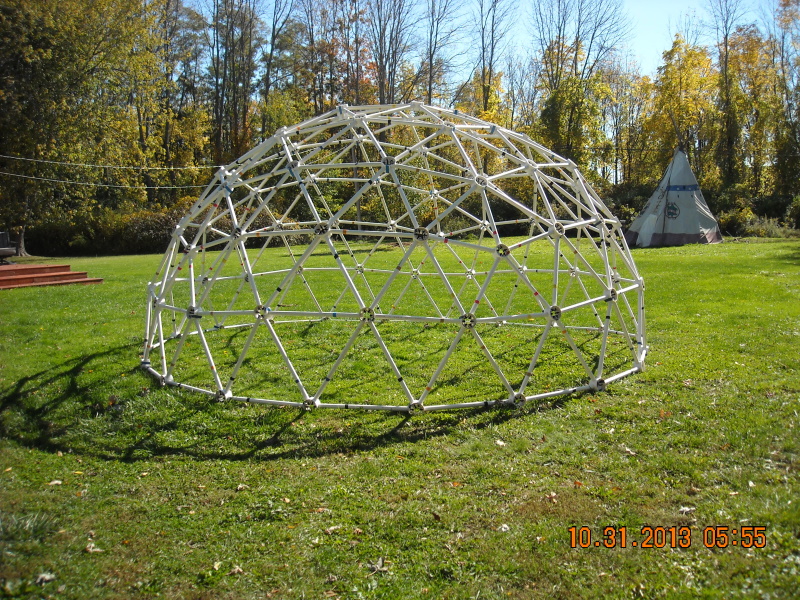

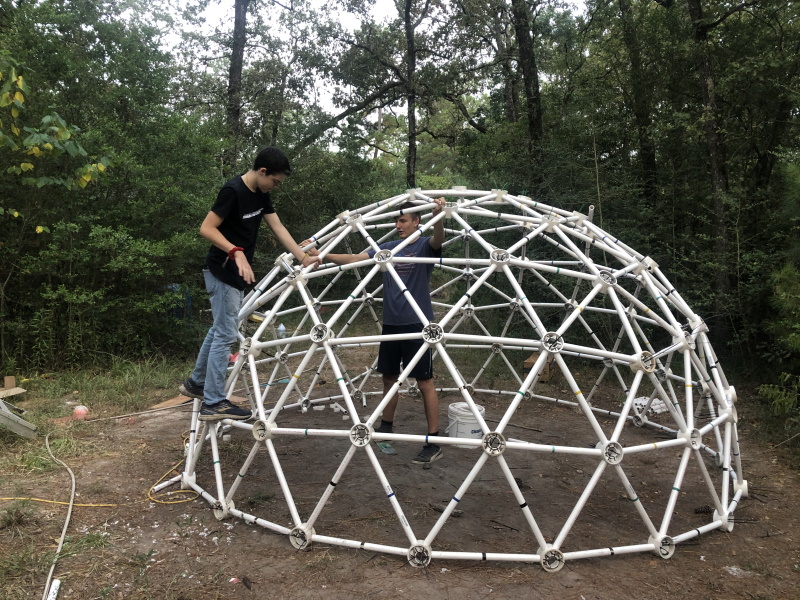

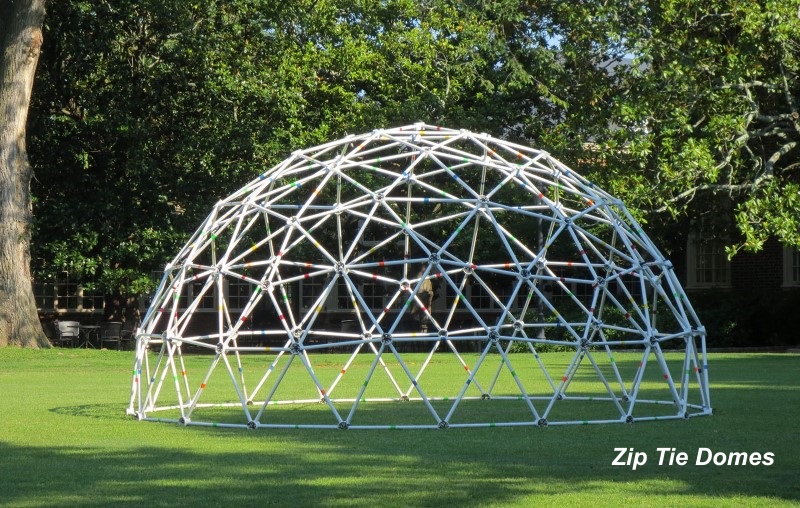

4v Geodesic Domes Examples

  • 4v Geodesic Dome Plans
    4v Geodesic Dome Plans
  • 4v Geodesic Dome
    4v Geodesic Dome
  • 4v Geodesic Dome
    4v Geodesic Dome
  • 4v Geodesic Dome
    4v Geodesic Dome
  • 4v Geodesic Dome
    4v Geodesic Dome

91 hubs, 250 struts.
The 4v Dome is the largest dome offered for download.
Listed 4v Dome Sizes: 21' wide to 38' wide.
You can build larger or smaller 4v Domes by adjusting the strut lengths, contact us for details.

4v Dual Covering Hubs

Requires a Chop Saw to Manufacture.


5-way Red Hubs
6-way Blue Hubs

The Dual Covering Hubs are used for building geodesic greenhouses in cold weather environments.

  The Dual Covering Hubs allows a Greenhouse to be covered with 2 layers of plastic, one on the inside and one on the outside of the dome. This creates a "dead air space" between the two layers for plastic for better insulation.

 The Dual Covering Hubs require a chop saw to manufacture.

Tools Needed to Manufacture the Dual Covering Hubs: A Power Hand Drill or Drill Press, and a Chop Saw for cutting the hubs and rings.







Each 4v Download Contains:

  • A Manufacturing Manual with step by step details on how to make our patented Dual Covering hubs. (36 pages with color photographs for each step.)
  • The correct bit size for drilling the hub outer collar for each strut diameter and type.
  • Complete instructions for using 1", 3/4", 1/2" Schedule 40 PVC Pipe, or 1", 3/4", 1/2" EMT Conduit, or 32mm, 25mm OD Metric Pipe for making your own Geodesic Dome struts.
  • The lengths for cutting the geodesic dome struts to make each dome size.
  • An assembly video and construction diagram for building the dome.
  • A 4v Geodesic Dome Calculator to help you build a dome of any size.
  • A License that authorizes you to legally manufacture up to 3 Geodesic Domes using our patented hub design.
  • Ongoing Customer support by email or telephone to answer any of your technical questions.






Download a Complete Set of Instructions and Manufacturing License for Building a 4v Geodesic Dome Using our Patented Hub Design




4v Geodesic Dome Plans
(with Dual Covering Hubs) - $91.00
91 hubs, 250 struts.
Download 4v Geodesic Dome Plans (with Dual Covering Hubs)
Price: $91.00

Secure Credit Card Processing by

We cannot accept returns on digital downloads.

All digital download sales are final.

If you have any questions, you can call us at 1 (931) 858-6892.
